JC817

JC817C (JC817C) ()

产品说明

●特点：

1.电流传输比（CTR：在IF =5毫安50分钟％，VCE= 5V）

2.高输入输出隔离电压（VISO=5,000Vrms）

3.响应时间（TR：TYP4微秒在VCE= 2V，IC =2毫安，RL =100Ω）

四，包装类型：

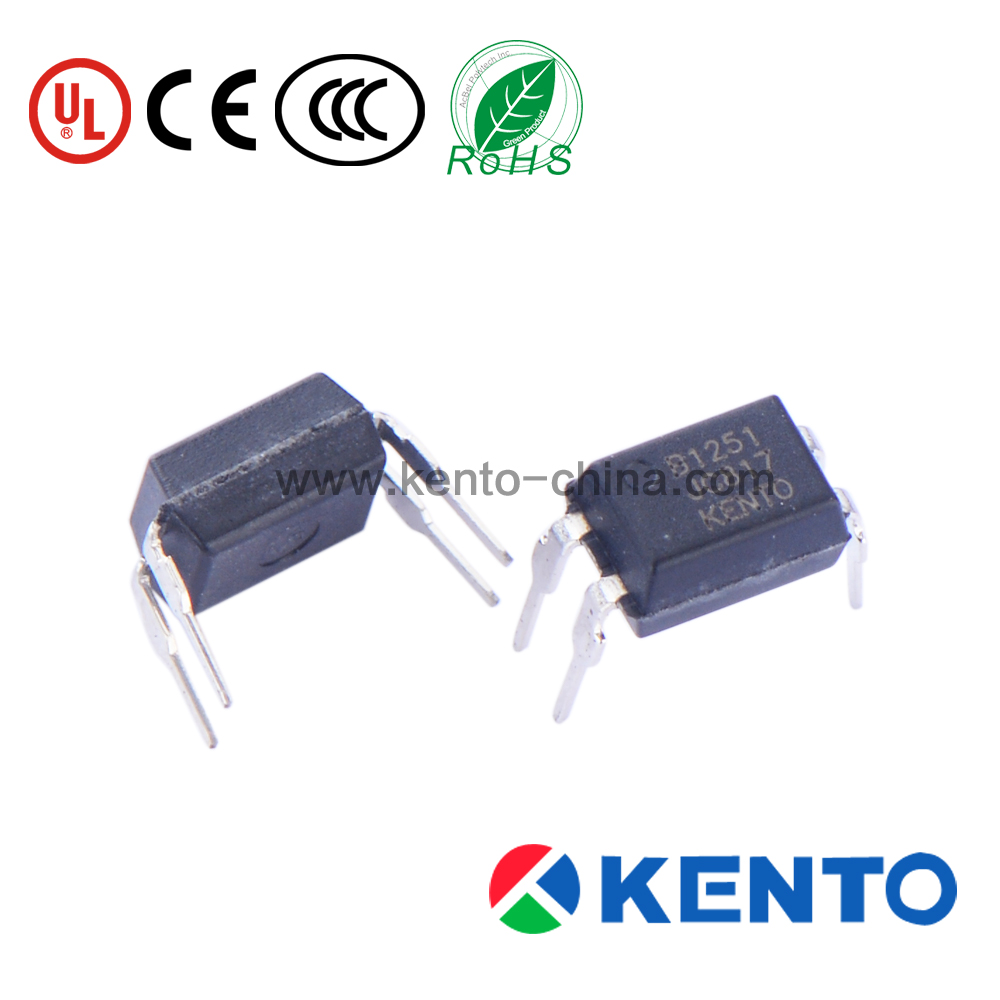

JC817：双列直插式封装

JC817M：宽引脚间距封装

JC817S：表面安装封装JC817S1：其他表面安装封装

5. CQC批准

6. UL认证

7. CSA认证

●说明

1. JC817系列是光学含有砷化镓发光二极管和NPN硅光电晶体管耦合隔离

2.引线间距是2.54毫米

●应用范围：

1.计算机终端。

2.系统设备，测量仪器。

3.寄存器，复印机，自动售货机。

4.小家电，如风扇加热器等。

5.不同的潜能和阻抗电路之间的信号传输。

●[敏感词]大额定值（Ta= 25℃）

Parameter		Symbol	Rating	Unit
INPUT	Forward Current	IF	50	mA
	Reverse Voltage	VR	6	V
	Power Dissipation	P	70	mW
OUTPUT	Collector-Emitter Voltage	VCEO	70	V
	Emitter- Collector Voltage	VECO	6	V
	Collector Current	IC	50	mA
	Collector Power Dissipation	PC	150	mW
Total Power Dissipation		Ptot	200	mW
*1 Isolation Voltage		Viso	5,000	Vrms
Operating Temperature		Topr	-30 to + 100	℃
Storage Temperature		Tstg	-55 to + 125
*2 Soldering Temperature		Tsol	260

*1. AC for 1 minute, R.H. =40~60%
Isolation voltage shall be measured using the following method.
(1) Short between anode and cathode on the primary side and between collector and emitter on the secondary side.
(2) The waveform of applied voltage shall be a sine wave.

*2. For 10 Seconds
●Electro-Optical Characteristics (Ta=25℃)

Parameter		Symbol	Conditions	MIN.	TYP.	MAX	Unit
INPUT	Forward Voltage	VF	IF=20mA	---	1.2	1.4	V
	Reverse Current	IR	VR=4V	---	---	10	μA
	Terminal Capacitance	Ct	V=0, f=1KHz	---	30	250	pF
OUTPUT	Collector Dark Current	ICEO	VCE=20V, IF=0	---	---	100	nA
	Collector-Emitter Breakdown Voltage	BVCEO	IC=0.1mA IF=0	70	100	---	V
	Emitter-Collector Breakdown Voltage	BVECO	IE=10μA IF=0	6	9	---	V
	Collector Current 2	Ic	IF=5mA VCE=5V	2.5	---	30	mA
	*2 Current Transfer Ratio 2	CTR	IF=5mA VCE=5V	50	---	600	%
	Collector-Emitter Saturation Voltage	VCE(sat)	IF=20mA IC= 1mA	---	0.1	0.2	V
	Isolation Resistance	Riso	DC500V 40~60%R.H.	5×1010	1×1011	---	Ω
	Floating Capacitance	Cf	V=0, f=1MHz	---	0.6	1	pF
	Cut-Off Frequency	fc	VCE=5V, IC=2mA RL=100Ω, -3dB	---	80	---	kHz
	Response Time(Rise)	tr	VCE=2V, IC=2mA RL=100Ω	---	4	18	μs
	Response Time(Fall)	tf	VCE=2V, IC=2mA RL=100Ω	---	3	18	μs

*1﹕ CTR= IC / IF × 100%
●Rank Table Of Current Transfer Ratio(CTR)

RANK M ARK	Min. (%)	Max. (%)
L	50	100
A	80	160
B	130	260
C	200	400
D	300	600
L or A or B or C or D	50	600

Notes: 1. Conditions: IF=5mA, VCE=5V, Ta=25℃.
